Standard 30x120 LED Panel

Unicopper backlight series high standard panels provide ultra bright and uniform lighting distribution, it is classical looks which makes your space clean and soft. The backlight design ensure the panels will never become yellow or dark even after years using. This panel has a standard 295x1195 dimension which is suitable for various market all over the world. Today, these beautiful products are widely used for commercial buildings, office building, school, hospital, supermarket ....
Item UB40W3012010040K
Input 220-240V
Power 40W
Lumen 4000LM
Efficiency 100LM/W
Ra >80
Color Temp. 4000K
Dimensions 295x1195x30mm
Product Details

Product Features:


- Classic appearance design, simple and elegant, never goes out of style.

- Uniform light distribution, providing a comfortable and soft lighting space.

- Backlit design makes no yellowing ,no darkness area even after years using.

- Available in 100LM/W, 120LM/W, 140LM/W, 160LM/W, 180LM/W and 200LM/W.

- Available in Ra>80, Ra>90 and Ra>95.

- Available in UGR<22 opal diffuser and UGR<19 micropismatic diffuser.

- Can be installed in recessed, surface mounting and suspending.

- Compatible with different kinds of 0-10V, Dali and tunable white dimming drivers.

- Compatible with emergency kits and different kinds of motion sensor.

- Long lifetime 50,000 hours maintenance free operation in available.

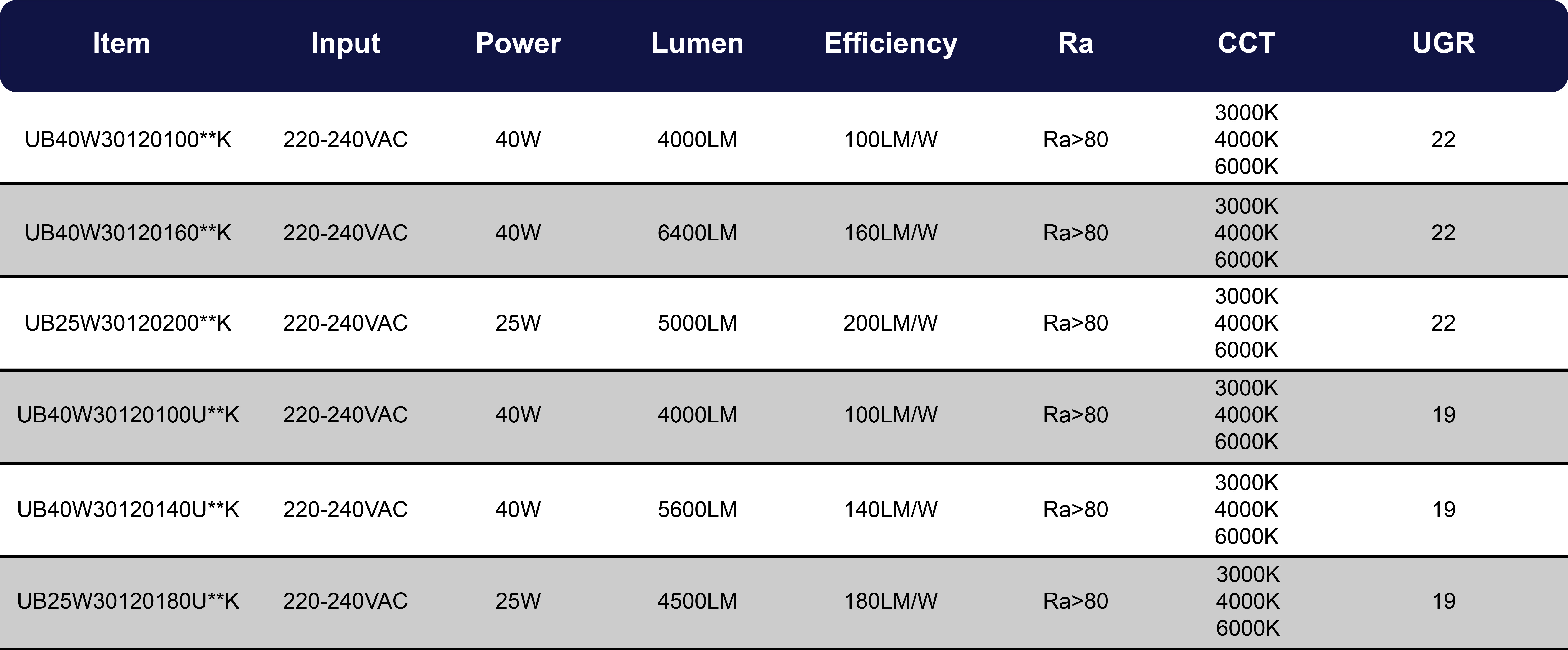

Product Specifications:


30x120直发光产品参数表_画板 1.jpg
