Backlit Panel 30x120

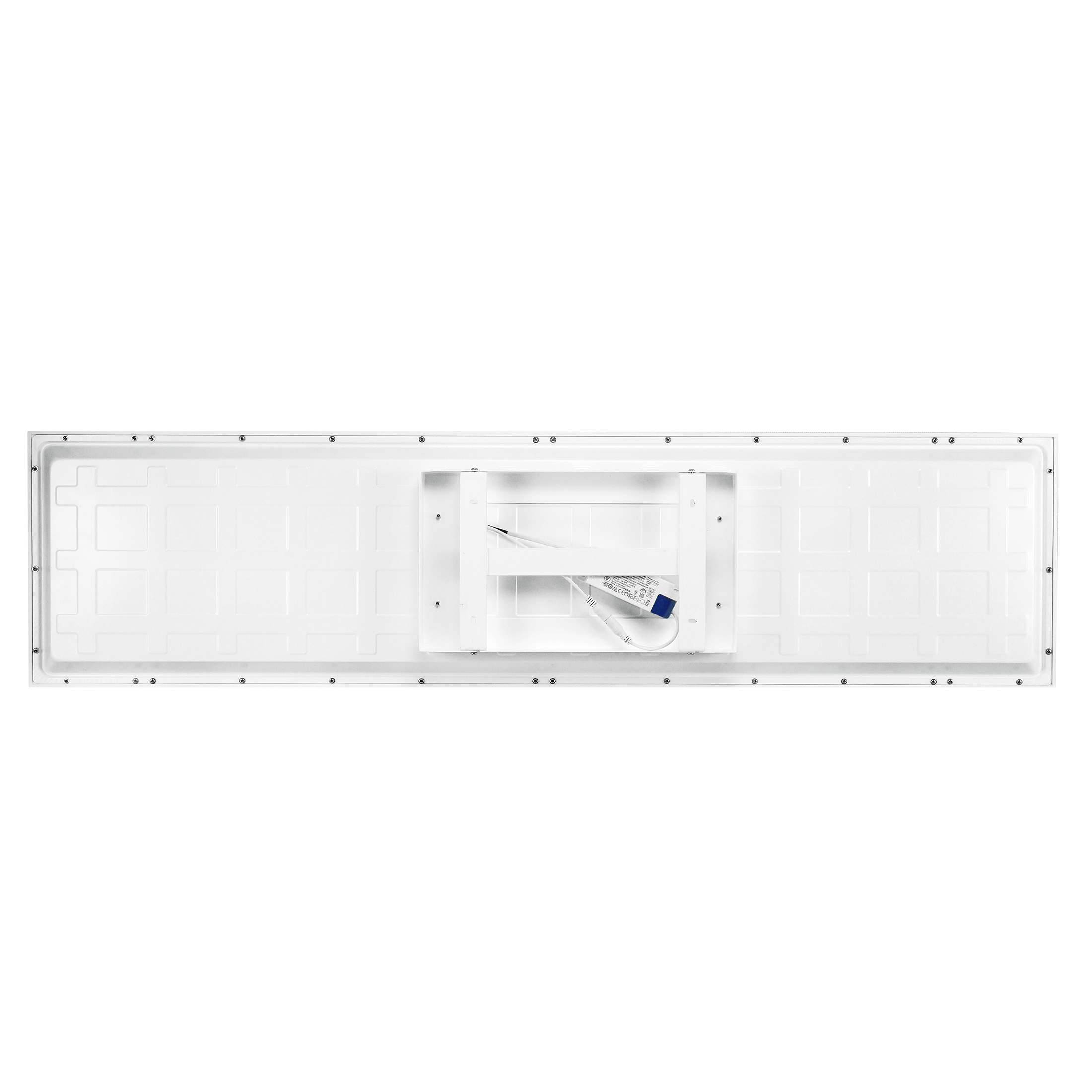

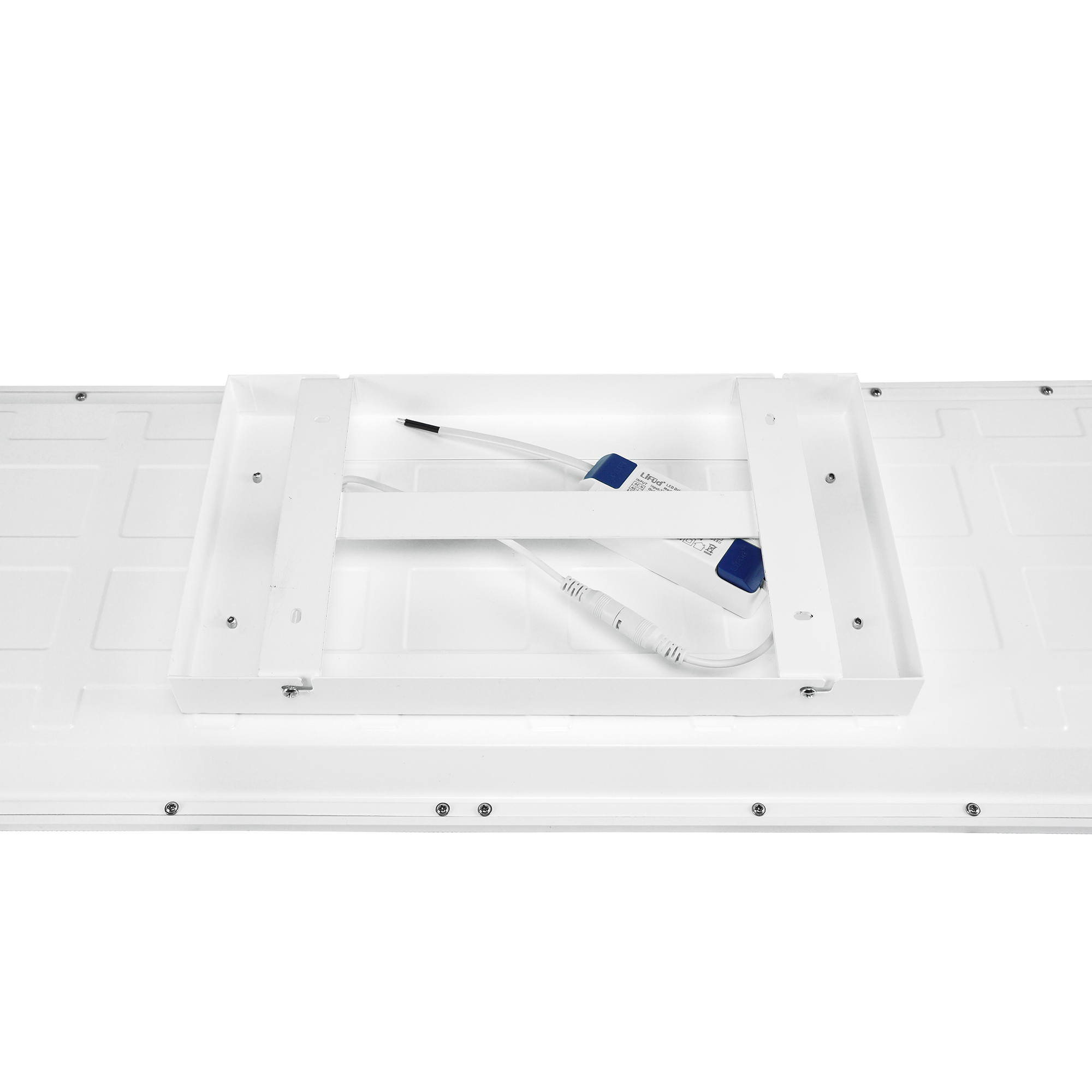

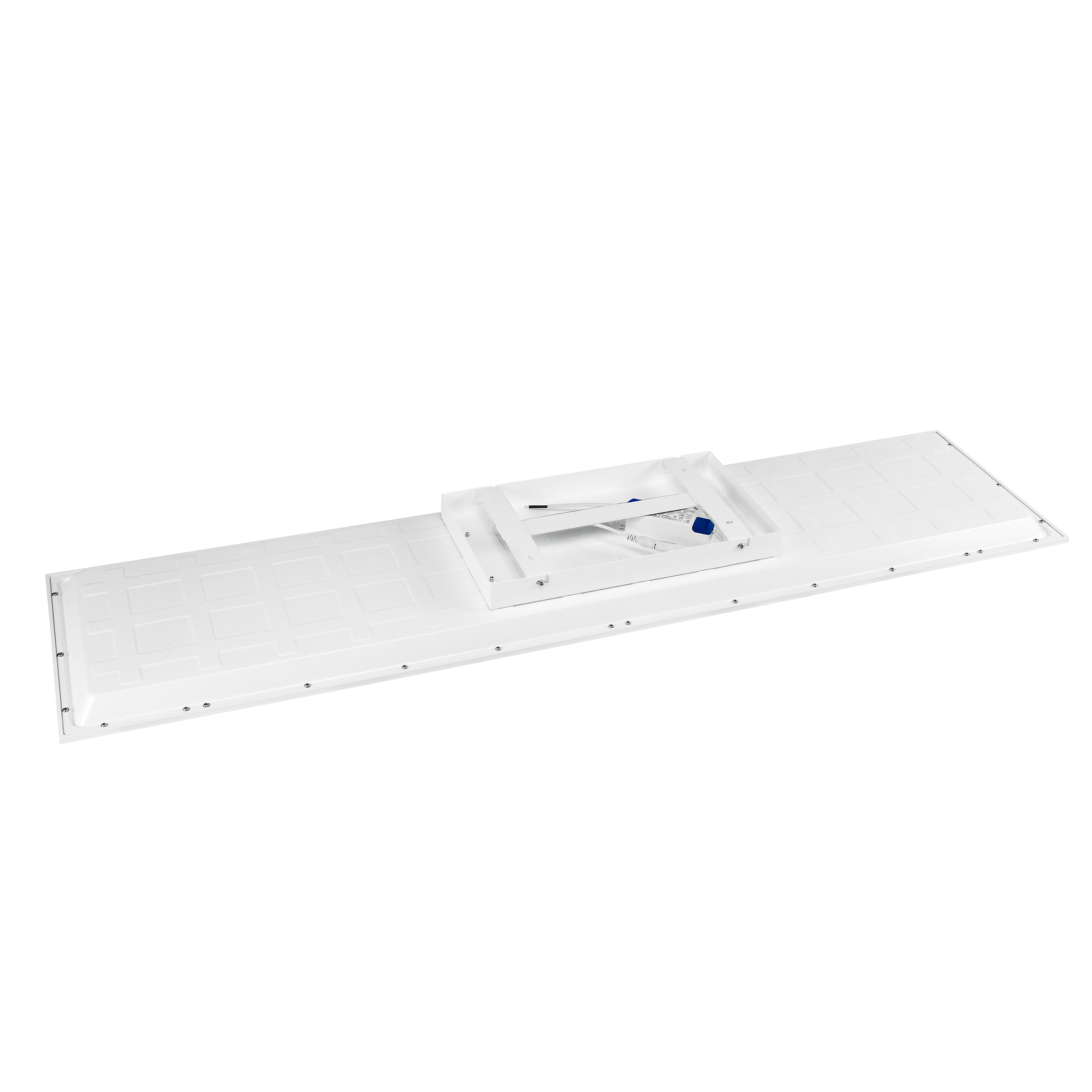

Unicopper customized backlight panel has customized installation bracket on the back of the panel, this panel can be mounted in recessed, surface mounting and suspending 3 different ways. The backlight design ensure the panels will never become yellow or dark even after years using. This panel has a standard 295x1195 dimension which is suitable for various market all over the world.
Item UB40W30120120Z40K
Input 220-240V
Power 40W
Lumen 4800LM
Efficiency 120LM/W
Ra >90
Color Temp. 4000K
Dimensions 295x1195x30mm
Product Details

Product Features:


- Classic appearance design, simple and elegant, never goes out of style.

- Uniform light distribution, providing a comfortable and soft lighting space.

- Backlit design makes no yellowing ,no darkness area even after years using.

- Available in 100LM/W, 120LM/W, 140LM/W, 160LM/W, 180LM/W and 200LM/W.

- Available in Ra>80, Ra>90 and Ra>95.

- Available in UGR<22 opal diffuser and UGR<19 micropismatic diffuser.

- Can be installed in recessed, surface mounting and suspending.

- Compatible with different kinds of 0-10V, Dali and tunable white dimming drivers.

- Compatible with emergency kits and different kinds of motion sensor.

- Long lifetime 50,000 hours maintenance free operation in available.

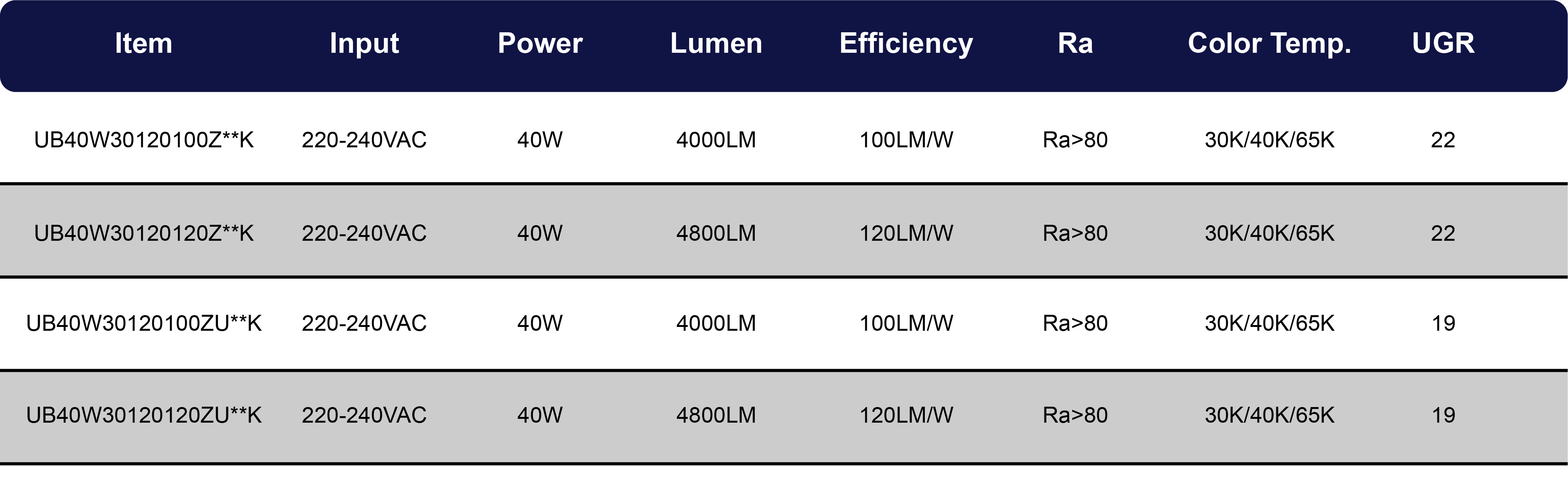

Product Specifications:
