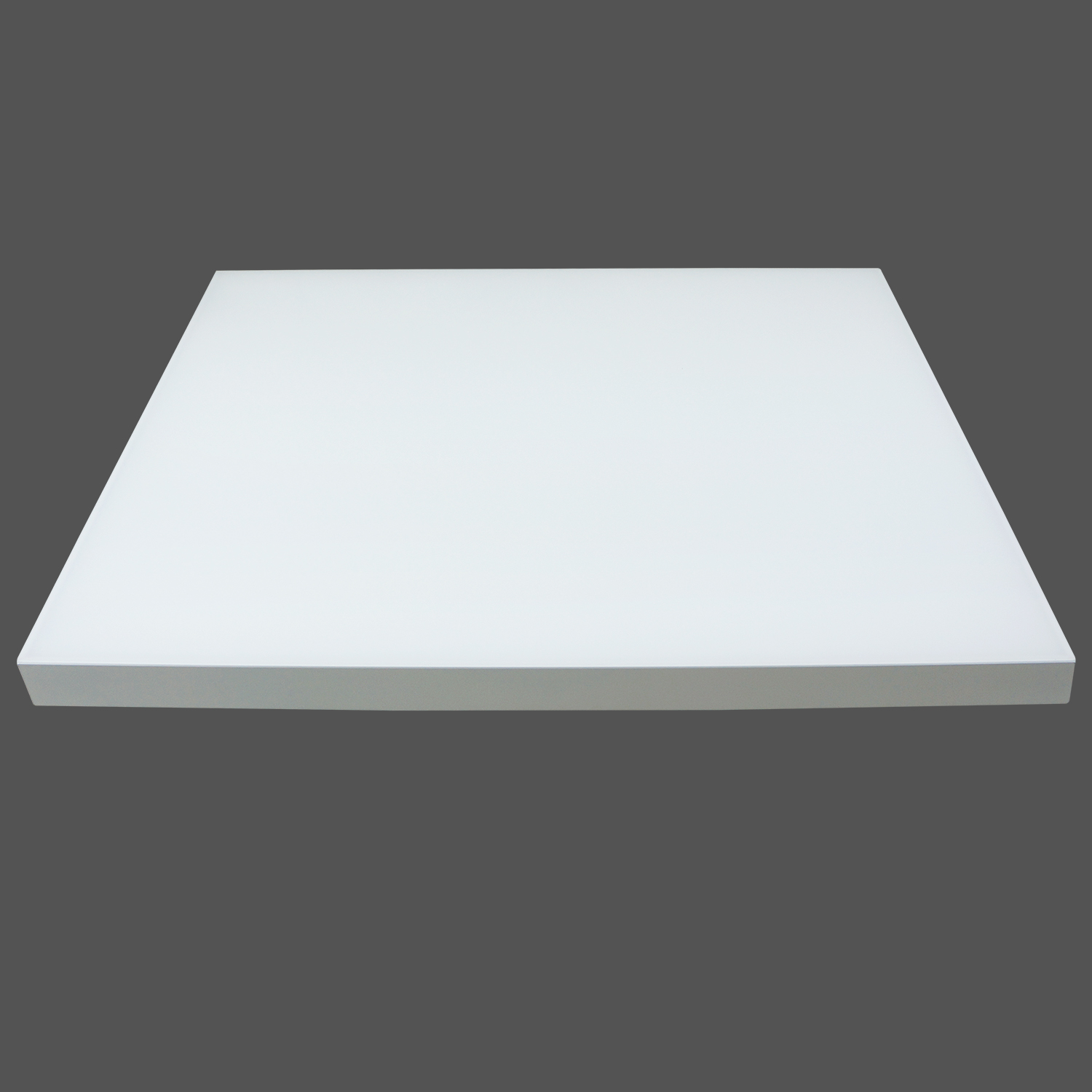

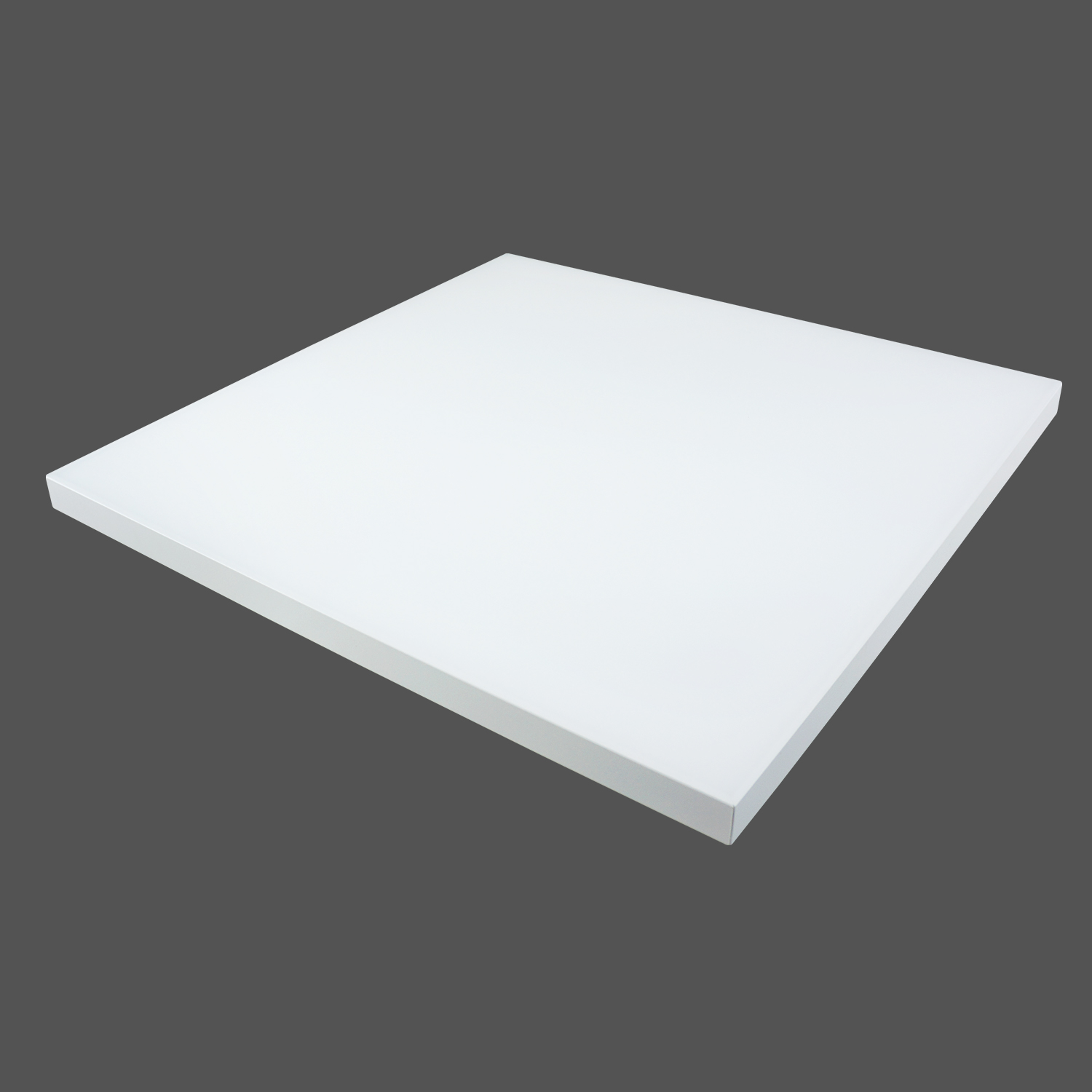

Frameless LED Panel

Unicopper frameless panel will be perfectly match the grid ceiling, there is no extra frame you can see from the grid ceiling, it's beautiful and elegant. The backlight design ensure the panels will never become yellow or dark even after years using. This panel has a standard 595x595 dimension which is suitable for various market all over the world. Today, these beautiful products are widely used for commercial buildings, office building, school, hospital, supermarket ....
Item UB40W6060100F40K
Input 220-240V
Power 40W
Lumen 4000LM
Efficiency 100LM/W
Ra >80
Color Temp. 4000K
Dimensions 595x595x60mm
Product Details

Product Features:


- frameless design, simple and elegant, makes the grid ceiling looks perfectly.

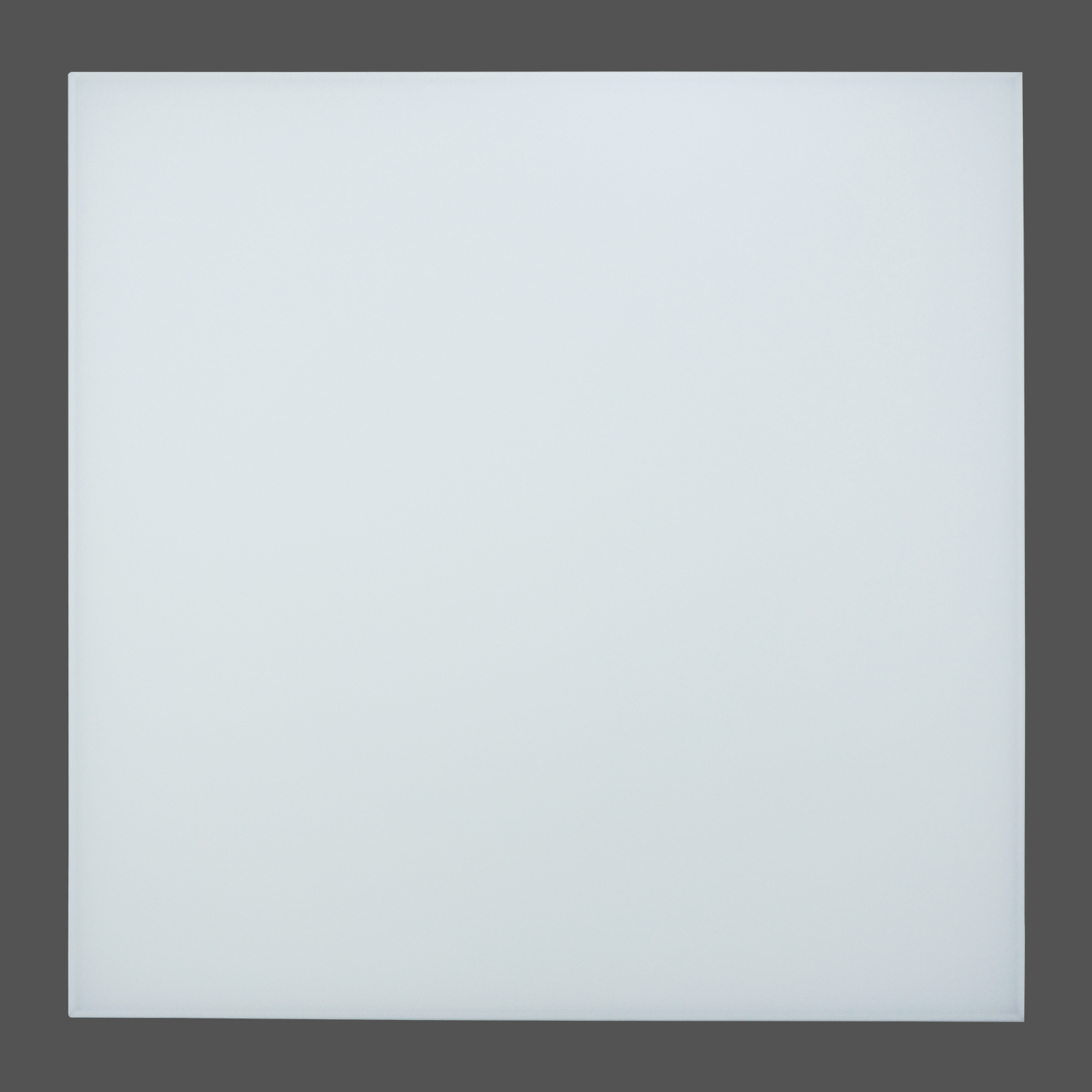

- Uniform light distribution, providing a comfortable and soft lighting space.

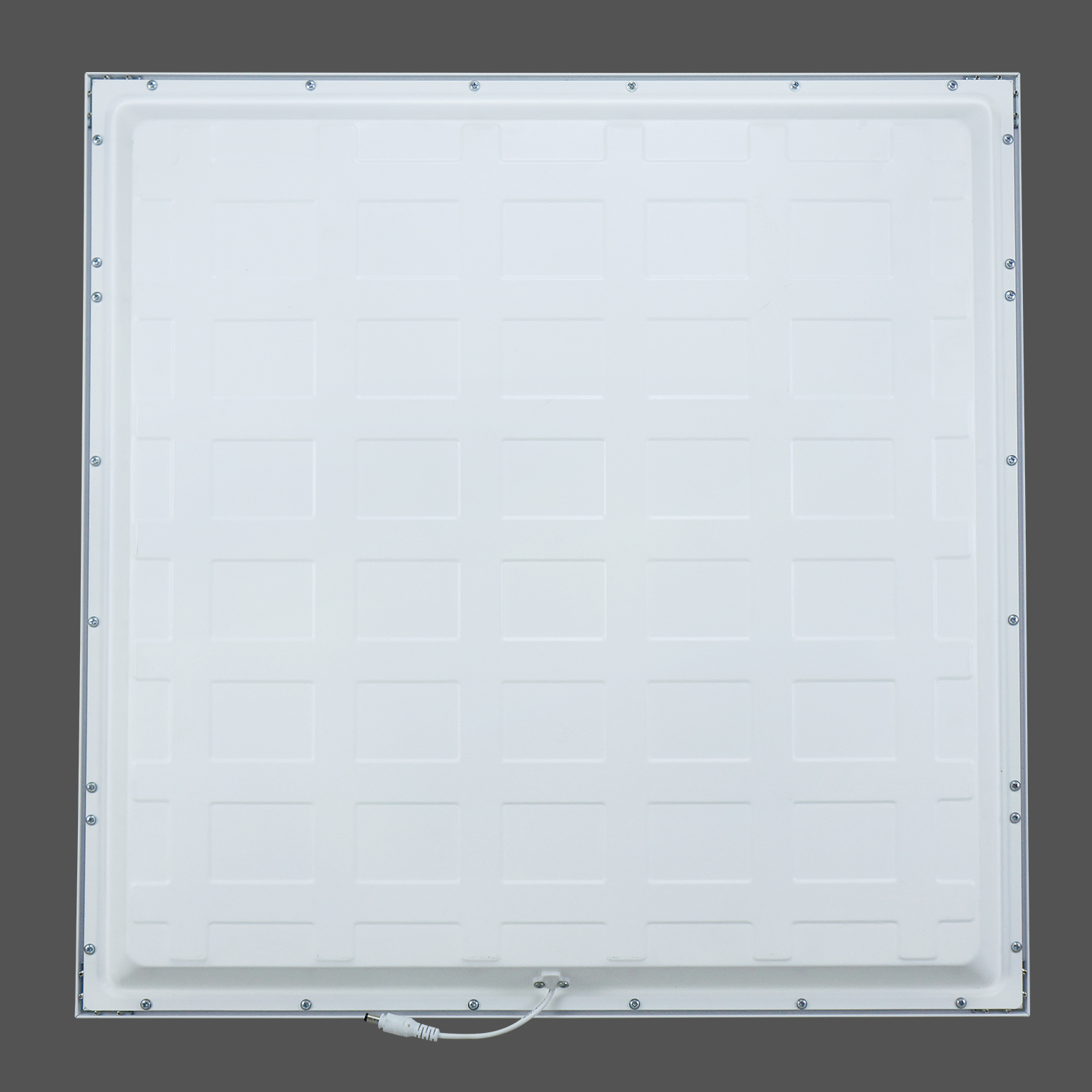

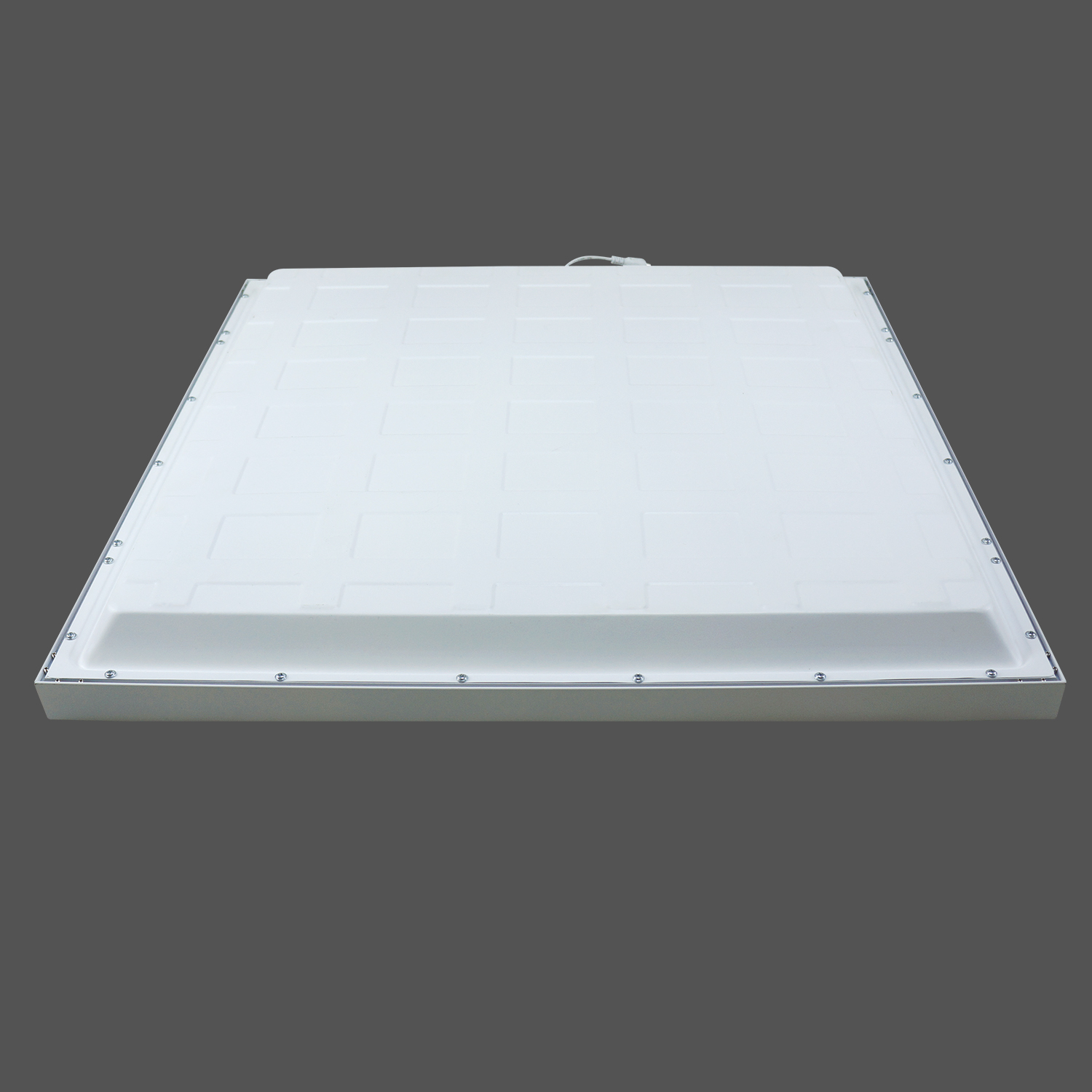

- Backlit design makes no yellowing ,no darkness area even after years using.

- Available in 100LM/W, 120LM/W, 140LM/W, 160LM/W.

- Available in Ra>80, Ra>90 and Ra>95.

- Available in UGR<22 opal diffuser and UGR<19 micropismatic diffuser.

- Can be installed in recessed and suspending.

- Compatible with different kinds of 0-10V, Dali and tunable white dimming drivers.

- Compatible with emergency kits and different kinds of motion sensor.

- Long lifetime 50,000 hours maintenance free operation in available.

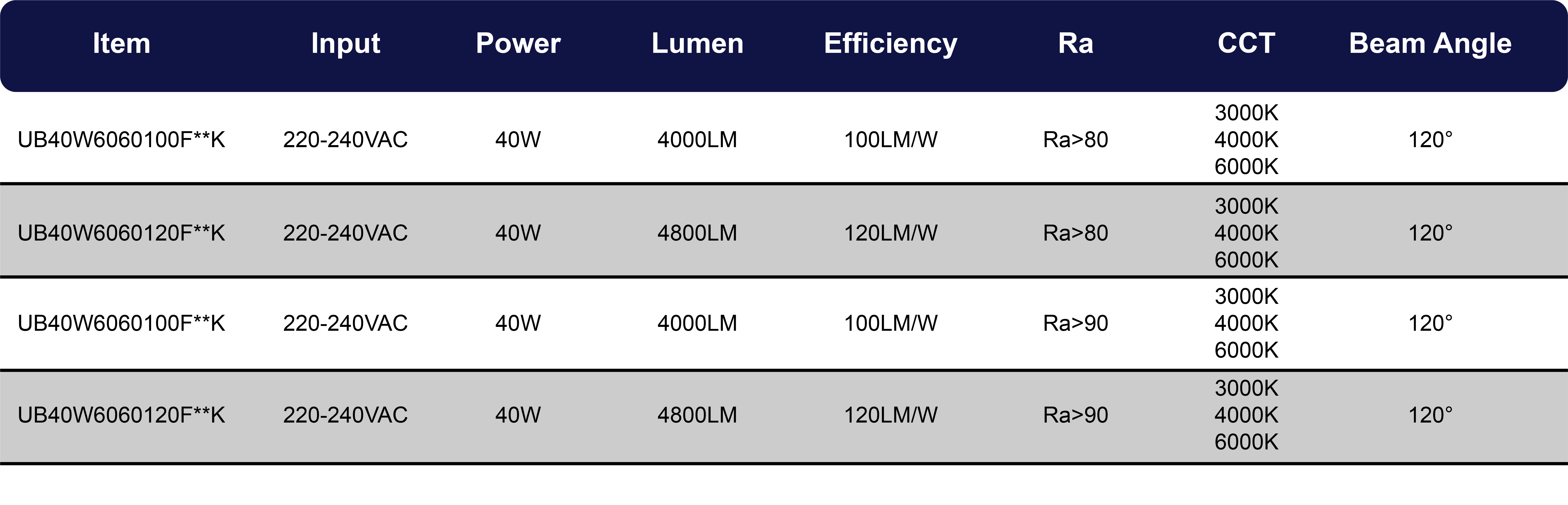

Product Specifications:


产品参数表无边框_画板 1.jpg
